FEATURES

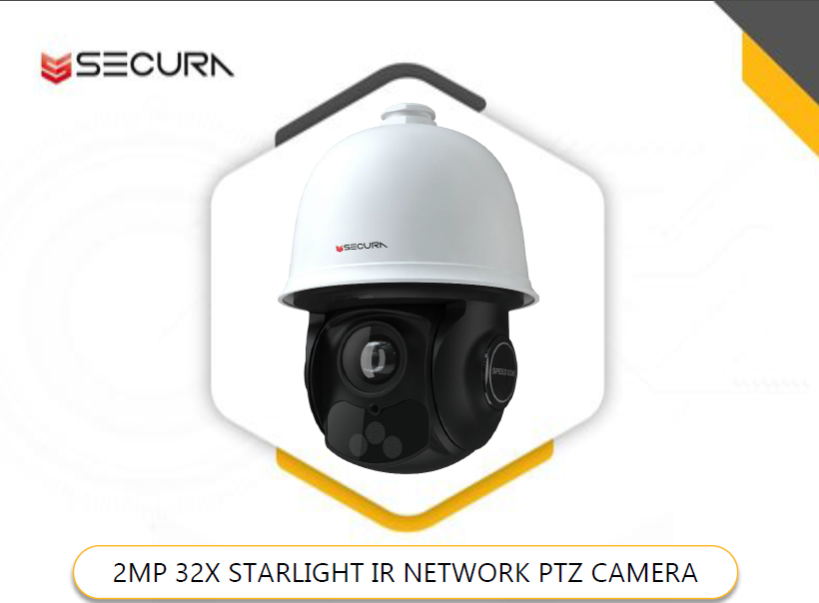

•2MP 32X Starlight 150m IR Network PTZ camera is suitable for wide range of intrusion and perimeter protection applications
•1/2.8″ progressive scan CMOS ,Up to 1920×1080 resolution
•Mini illumination: Colour: 0.005 lux @ (F1.6 AGC ON) B/W: 0.001 lux@ (F1.6 AGC ON) 0 Lux with IR
•32x optical zoom, 16x digital zoom
•120 dB WDR, 3D DNR, Smart IR
•Smart IR up to 150m IR distance
•Smart H.265, only 128Kbps stream at 1080P
•Smart tracking of human/vehicle, Smart detection and perimeter protection
•IP66, -30°C~60°C, AluminumAlloy &Plastic
•PoE+, DC24V or AC24V power supply options
•ONVIF, API and SDK
System
Hi3516CV500
Image sensor
1/2.8″ progressive scan CMOS, (SONY IMX462)
Shutter Speed
1/1 s –1/10,000 s
White Balance
Auto/Manual/Indoor/Outdoor
Min. Illumination
Color0.005Lux @ (F1.65, AGC ON) B/W 0.001Lux @(F1.65, AGC ON); 0Lux with IR
mage setting
Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software/browser
Gain
Auto/Manual
Day & Night
IR Cut filter
Digital Zoom
16x
Privacy Mask
4 Programmable privacy masks
3D DNR
Auto/Manual
BLC/HLC
Yes
WDR
120 DB
Defog
Electronic
EIS
Yes
Picture overlay
Logo picture could be overlaid on video with 128x128pixels,24bits BMP format
Pan Range
360°endless
Pan speed
Configurable, from 0.1~80°/s; Presetspeed: 150°/s
Tilt Range
From -3°to 90°
Tilt Speed
Configurable, from 0.1°~ 80°/s, Presetspeed: 120°/s
Proportional Zoom
Yes
Preset
360
Cruise
8 cruises, up to 16 presetsfor each cruises
Track
4 tracks, record time over 3 minutes for each track
Power off memory
Support
Action mode
Preset/Cruise/Trace/Auto Scan/Random Scan
3D Positioning / PTZ Position Display
Support
Schedule Task
Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot
